| Description | Parameter value |
|
Product Name |

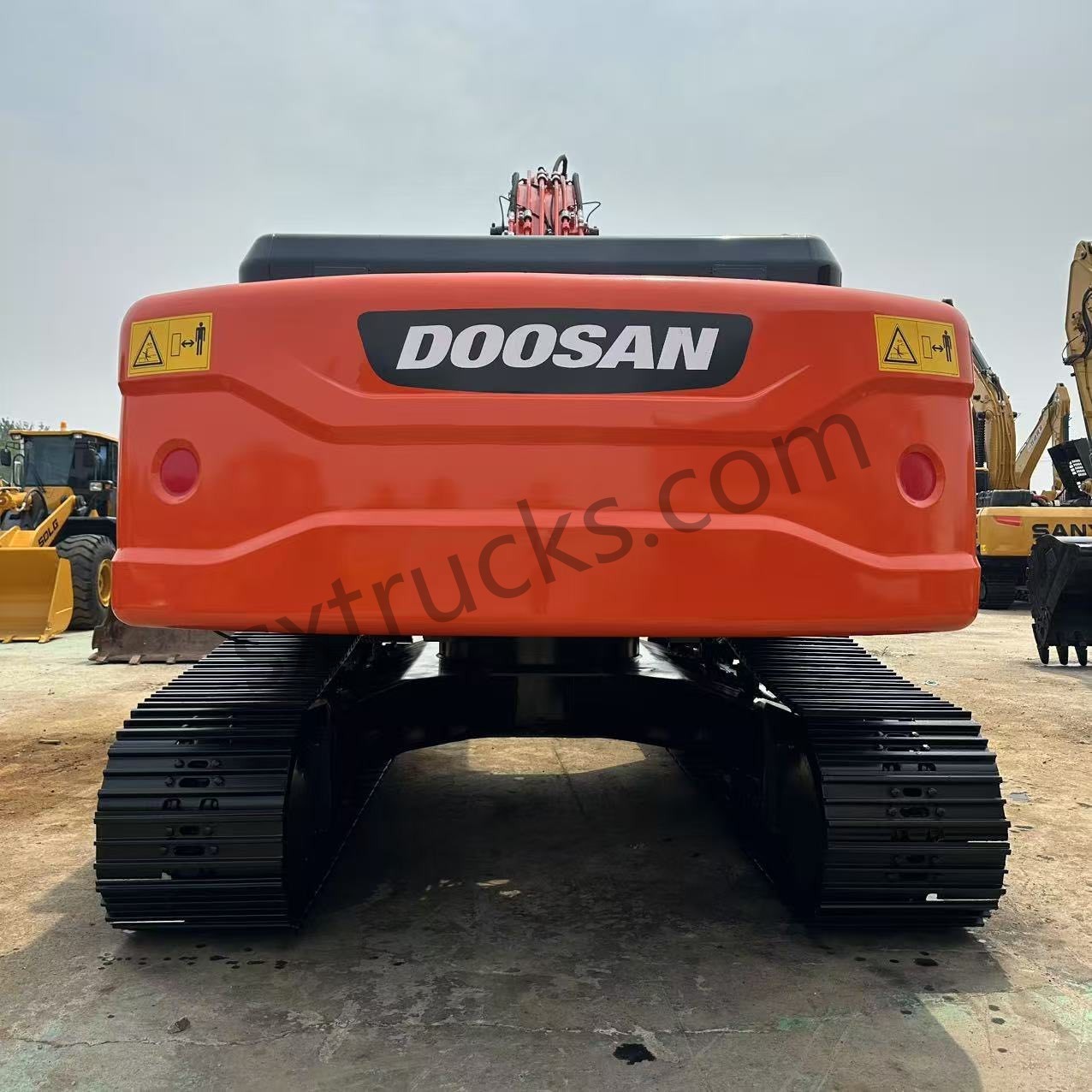

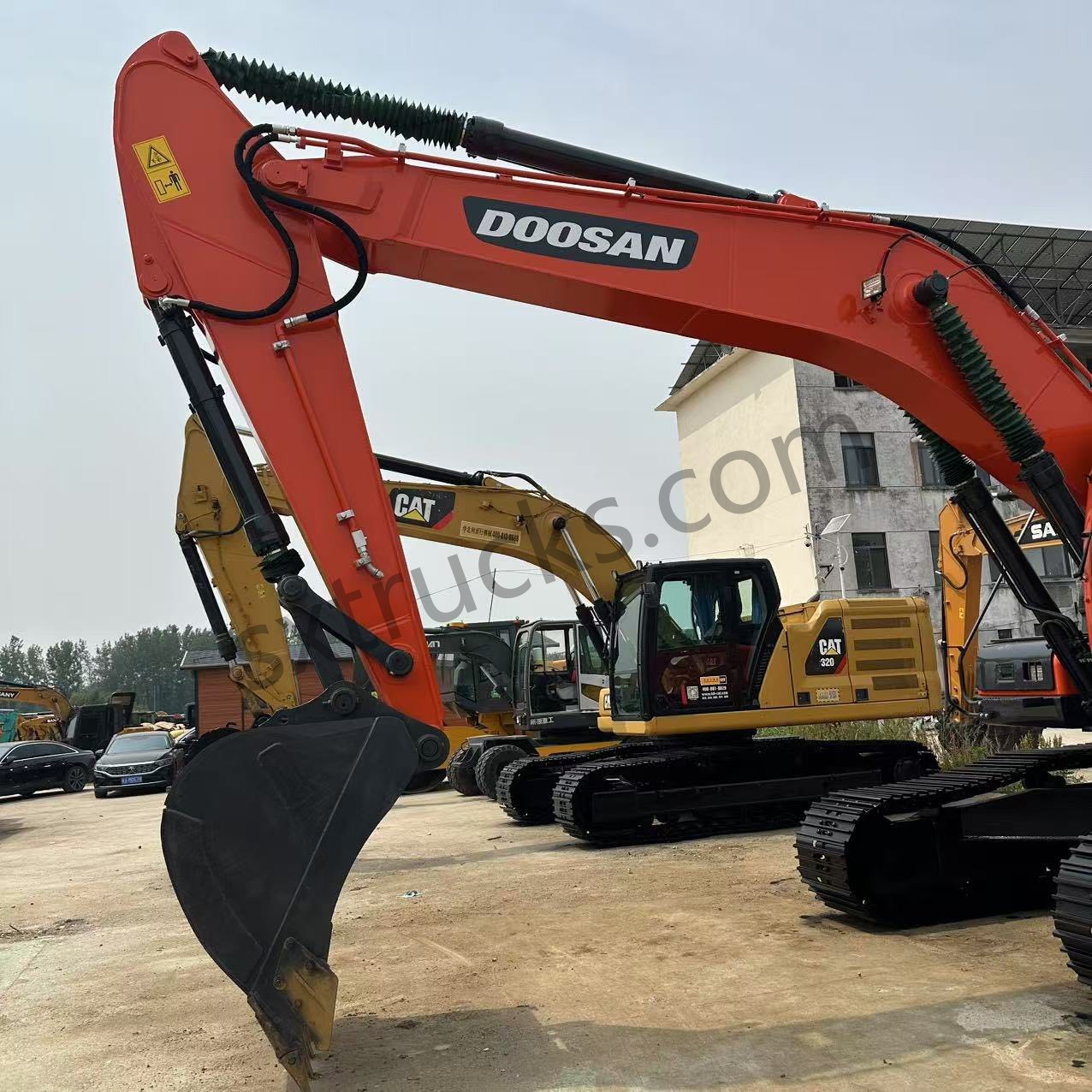

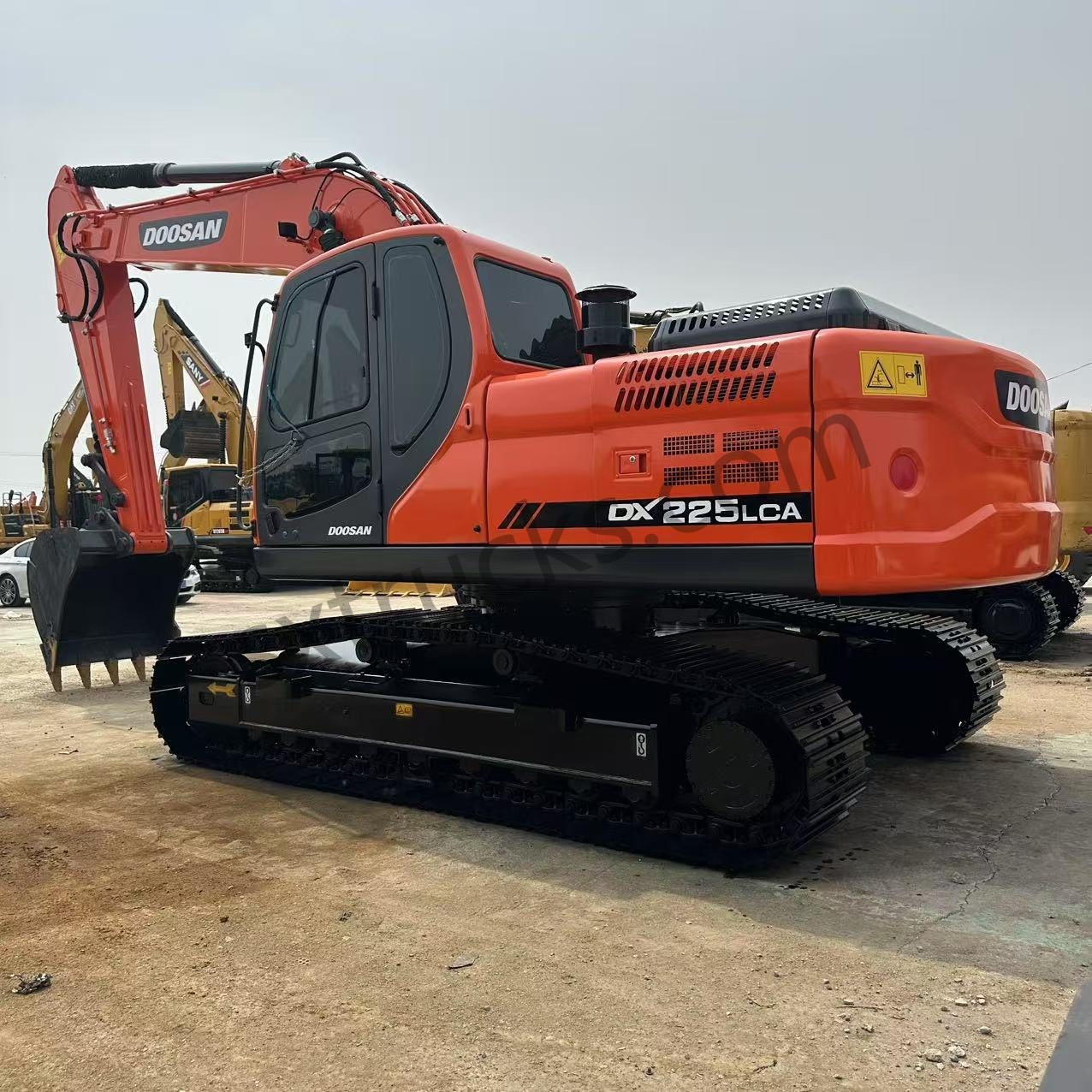

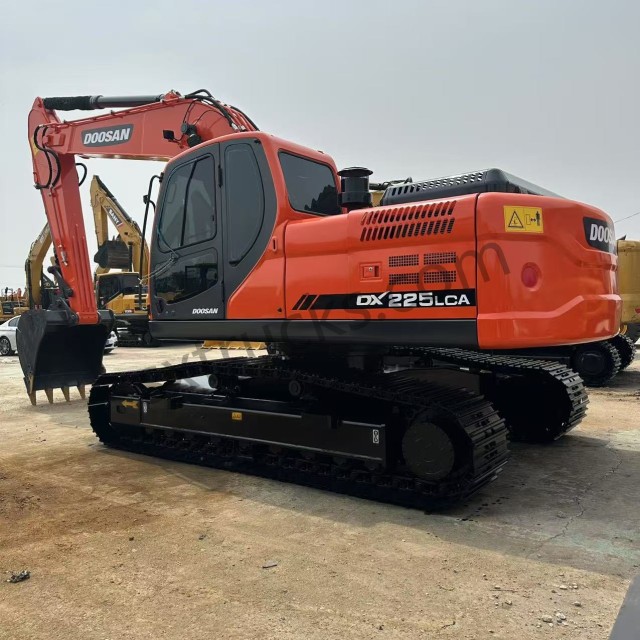

Doosan DX225LCA Medium Crawler Excavator |
|
Application Scenarios |
Earthmoving、Municipal Works、Mining Operations、Infrastructure Construction、Forestry & Agriculture、Global Export Ready |
|
Engine |
Doosan DB58TIS |
|
Emission Standard |
Euro III |
|
Operating Weight |
21,500kg |
|
Bucket Capacity |
0.92m³ |
|
Max. Digging Radius |
9,900mm |
|
Max. Digging Depth |
6,620mm |
|

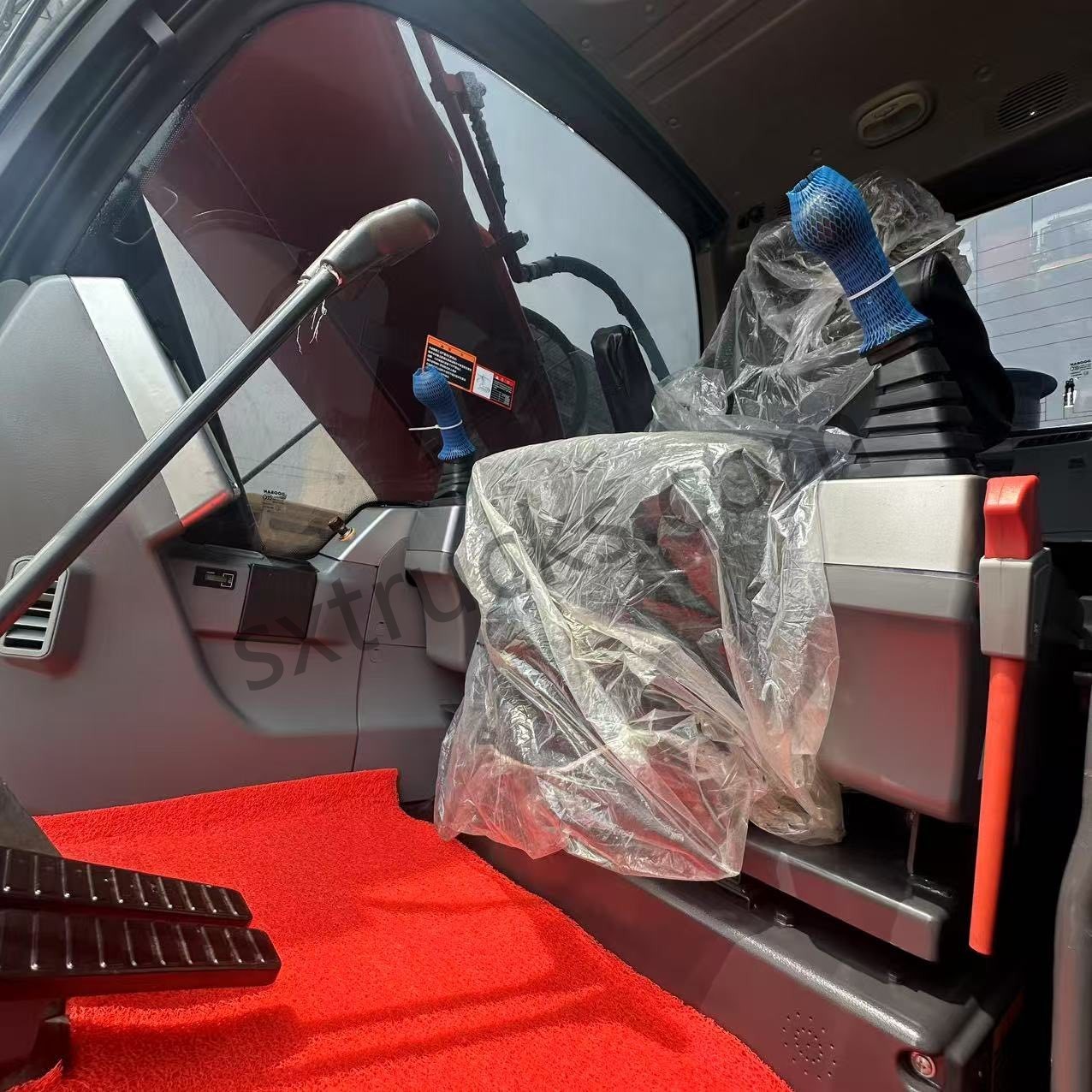

Cab |
Equipped with a ROPS/FOPS certified safety cab, it features panoramic tempered glass for full visibility and low noise/vibration design. It comes with a fully automatic air conditioning system, an adjustable air suspension seat with lumbar support, multi-function joysticks, and 5 working modes. Rearview camera and side mirrors are standard for enhanced safety. |
|
Travel System |
It has a heavy-duty crawler undercarriage with a standard 600mm track shoe (700/800mm optional). The 2-speed travel motor offers speeds up to 5.5km/h (high) and 3.2km/h (low). With a maximum gradeability of 35° and traction force of 222kN, it performs stably on tough and hilly terrain. |
|
Color |
Customizable |
|
Customization & Modification |
|
