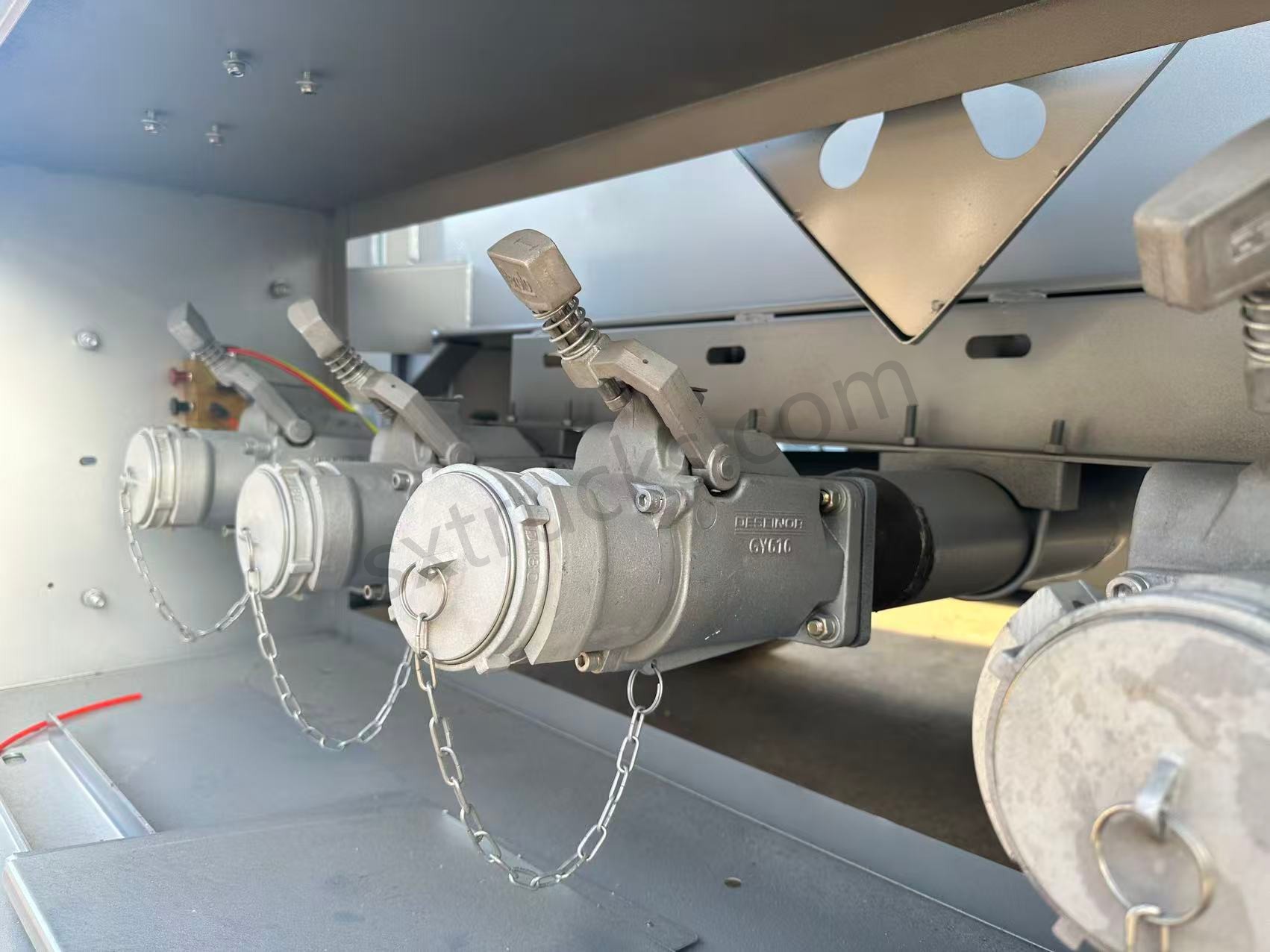

Foot Valve / Emergency Valve：4" Aluminum Alloy
Axle：FUWA 13-ton with widened brake lining

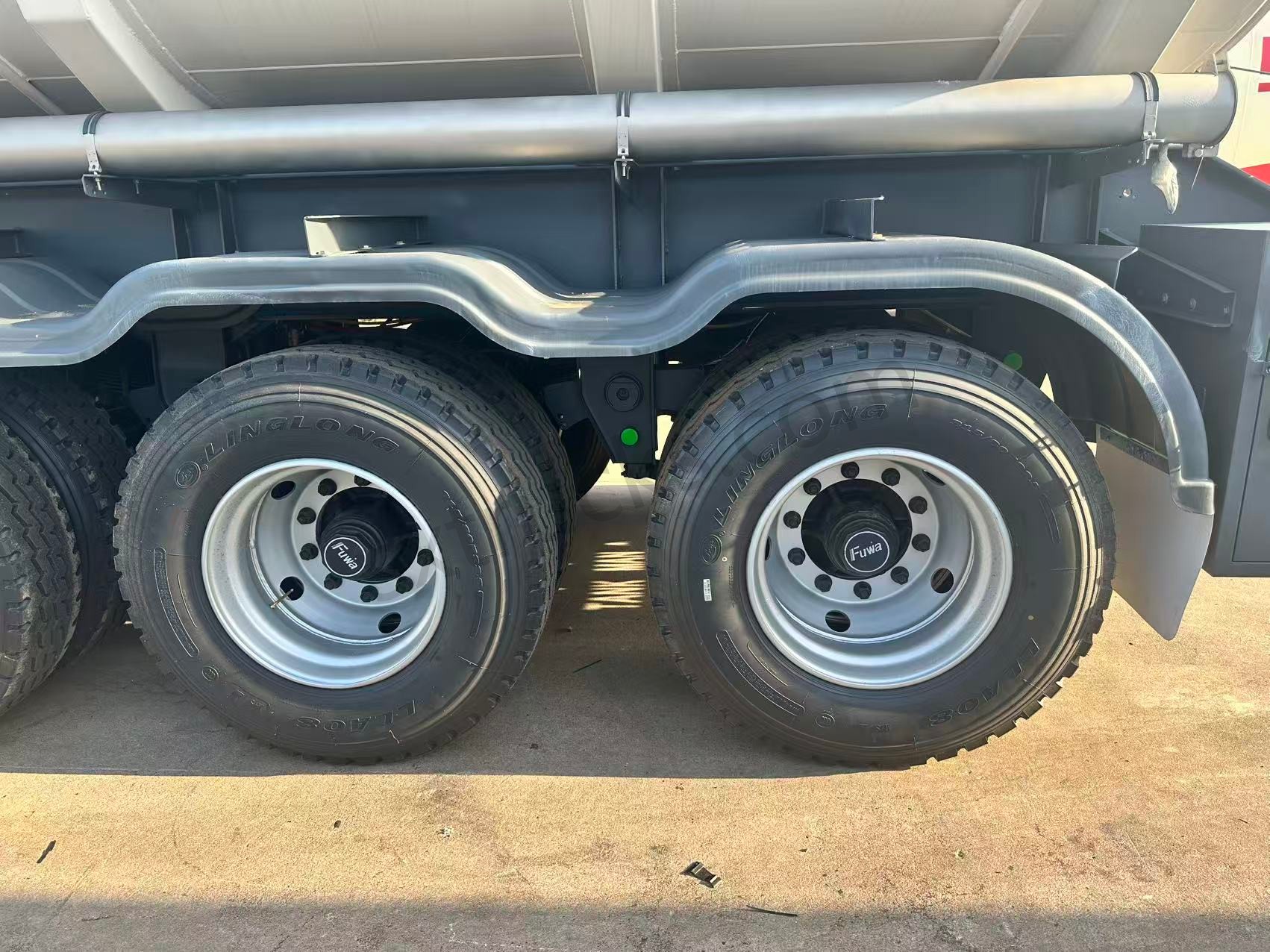

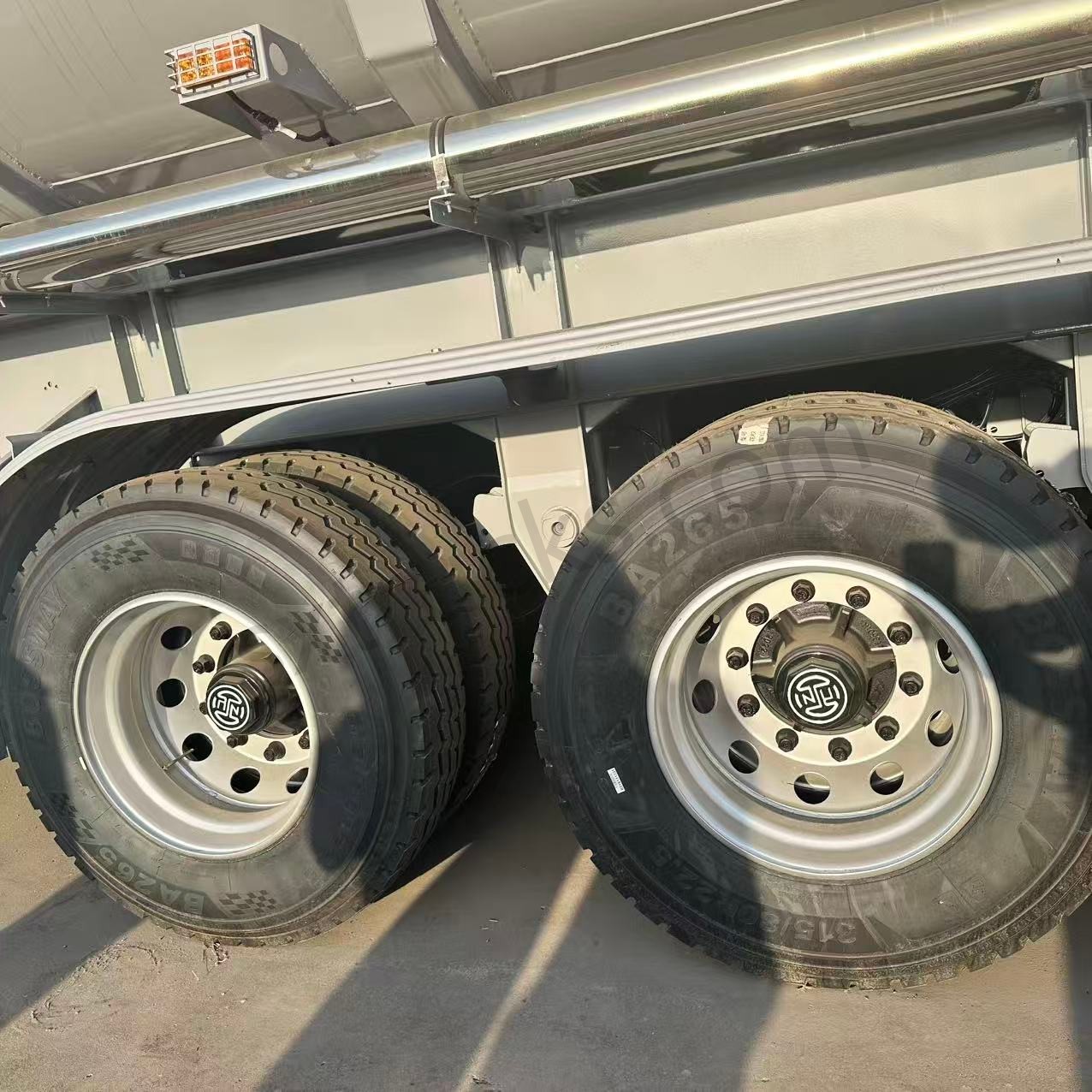

Tires：Linglong 315/80 R22.5
Wheel Rim：7*16

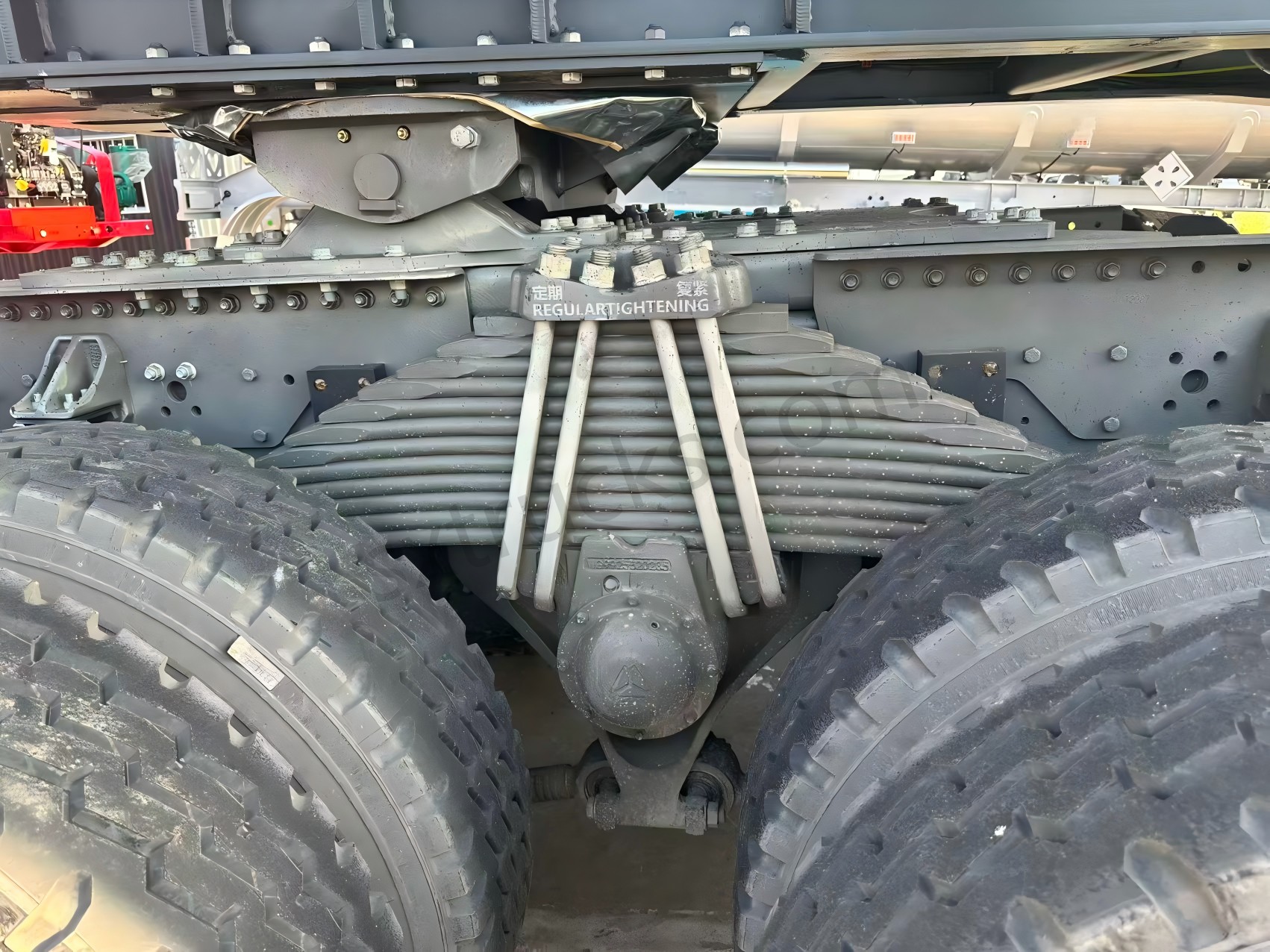

Leaf Spring：12pcs * 16mm thickness
Brake Chamber：REAL T30/30 Double Brake Chamber
Relay Valve：Kangjian 3-axle synchronous valve
Suspension：Factory-standard heavy duty mechanical
Kingpin：JOST 90# Bolted/Assembled type
Landing Gear：Yahua 103kg single-action
Manhole Cover：Euro-standard aluminum alloy (with P/V valve)
Spare Tire Carrier:Factory Standard
Tool Box:Steel body with aluminum door
Mudguard:Steel (Thickened & Reinforced)
Hose Carrier:Stainless Steel
| Component | Specification | Qty |
| Foot Valve / Emergency Valve | 4" Aluminum Alloy | 5 |
| Axle | FUWA 13-ton with widened brake lining | 3 |
| Tires | Linglong 315/80 R22.5 | 13 |
| Wheel Rim | 7*16 | 13 |
| Leaf Spring | 12pcs * 16mm thickness | 6 |
| Brake Chamber | REAL T30/30 Double Brake Chamber | 6 |
| ABS | None | — |
| Relay Valve | Kangjian 3-axle synchronous valve | 1 |
| Suspension | Factory-standard heavy duty mechanical | 1 |
| Kingpin | JOST 90# Bolted/Assembled type | 1 |
| Landing Gear | Yahua 103kg single-action | 1 |
| Manhole Cover | Euro-standard aluminum alloy (with P/V valve) | 5 |
| Spare Tire Carrier | Factory Standard | 2 |
| Tool Box | Steel body with aluminum door | 1 |
| Mudguard | Steel (Thickened & Reinforced) | 1 |
| Hose Carrier | Stainless Steel | 2 |

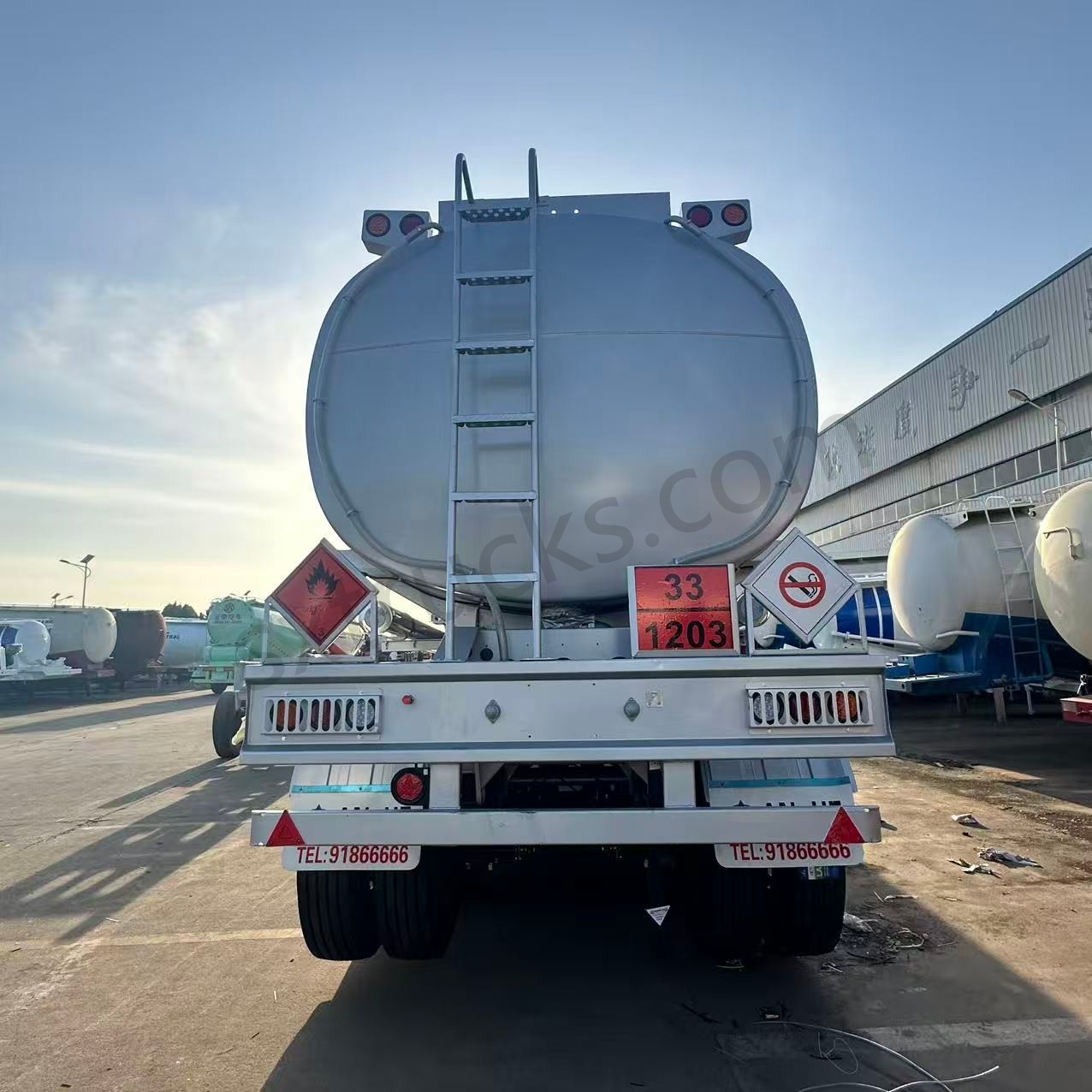

| Ladder | Rear-mounted | 1 |
| Discharge Hose | 5.5m Rubber hose DN80 with quick coupling | 2 |

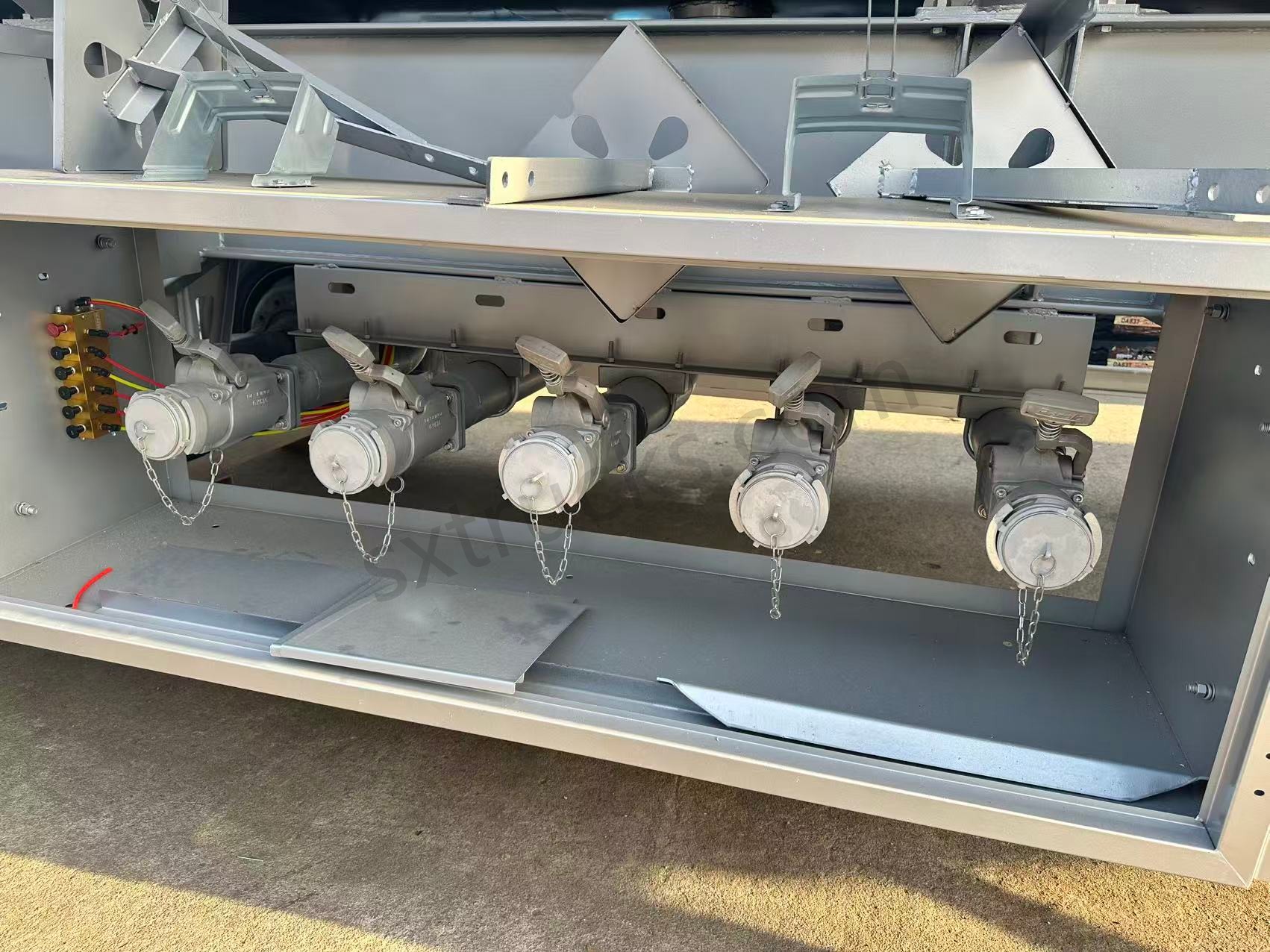

| Valve Box | Factory Standard | 1 |
| Air Tank | Enlarged type | 3 |
| Fire Extinguisher | Plastic box with 8kg extinguisher | 2 |
| Painting | Silver White (2 coats primer + 2 coats finish) | -- |
